Semi integrated solar street light

Semi integrated solar street light Specification

Efficiency
>18% (solar panel)

Features
Auto ON/OFF, Long Life, No Wiring, Waterproof, Maintenance Free

Input Voltage
Solar Powered (Panel Input)

Maintenance Type
Low / Maintenance Free

Product Type
Semi Integrated Solar Street Light

Material
Aluminum Alloy, Tempered Glass, ABS

Number of Cells
36 cells (typical, mono or polycrystalline type)

Power
20W - 60W (customizable)

Operating Temperature
-20C to 60C

Max Voltage
18V (panel)

Max System Voltage
24V DC

Output Voltage
12V DC

Cable Length
1-2 meters (customizable as per installation)

Switch Mode
Automatic Dusk to Dawn

Size
Panel: 680 x 350 mm (approx, varies by wattage)

Dimension (L*W*H)
Various, standard 680 x 350 x 50 mm panel size

Color
Cool White (Light), Black/Grey (Body)

Weight
5.5 kg (approx, varies with model)

Type Of Technology
LED with LiFePO4 Battery, Solar PV

Installation Type
Pole Mount or Wall Mount

Charging Time
6-8 hours (full sunlight)

Lighting Time
10-12 hours (after full charge)

LED Chip Brand
Bridgelux/Epistar/Equivalent

Mounting Height
4 - 8 meters recommended

Battery Capacity
12AH-24AH (varies by model)

Lumens Output
2400 - 7200 lm (varies by wattage)

Panel Type
Mono/Polycrystalline Silicon

Motion Sensor
Optional (PIR)

Life Span
>50,000 hours (LED light)

CCT (Correlated Colour Temperature)
6000 - 6500 K

Battery Type
Inbuilt LiFePO4 or Lithium Ion Battery

Ingress Protection
IP65

Semi integrated solar street light Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
50 Pieces Per Day

Delivery Time
2 Days

Semi integrated solar street light About

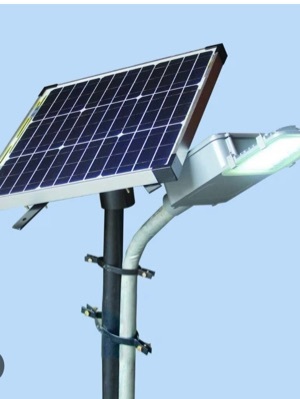

Shree Lux's Semi Integrated Solar Street Light features a separated solar panel and LED luminaire design, connected by cable, with an in-built high-efficiency LiFePO4 battery pack. This configuration allows more flexible pole mounting and panel orientation compared to fully integrated units, while retaining a compact, weatherproof housing. Available across a wide wattage range (6W40W) to suit pathways, parks, hospital premises, and highway lighting.pecifications (GL Series):

Model	Watt	Suggested PV Module	Battery	Lumen	L x B x H (mm)	L x B x H (cm)	L x B x H (in)
SLSSL-SEMI-GL-06	6W	20W	75Wh	900 lm	330x140x95	33.0x14.0x9.5	12.99x5.51x3.74
SLSSL-SEMI-GL-12	12W	40W	154Wh	1800 lm	440x190x105	44.0x19.0x10.5	17.32x7.48x4.13
SLSSL-SEMI-GL-15	15W	50W	154Wh	2250 lm	440x225x110	44.0x22.5x11.0	17.32x8.86x4.33
SLSSL-SEMI-GL-18	18W	60W	231Wh	2700 lm	440x225x110	44.0x22.5x11.0	17.32x8.86x4.33
SLSSL-SEMI-GL-24	24W	75W	231Wh	3600 lm	440x225x110	44.0x22.5x11.0	17.32x8.86x4.33
SLSSL-SEMI-GL-30	30W	100W	308Wh	4500 lm	500x250x115	50.0x25.0x11.5	19.69x9.84x4.53

Specifications (L Series):

Model	Watt	Suggested PV Module	Battery	Lumen	L x B x H (mm)	L x B x H (cm)	L x B x H (in)
SLSSL-SEMI-L-15	15W	50W	154Wh	2250 lm	410x150x145	41.0x15.0x14.5	16.14x5.91x5.71
SLSSL-SEMI-L-18	18W	60W	192Wh	2700 lm	410x150x146	41.0x15.0x14.6	16.14x5.91x5.75
SLSSL-SEMI-L-24	24W	75W	231Wh	3600 lm	410x150x147	41.0x15.0x14.7	16.14x5.91x5.79
SLSSL-SEMI-L-30	30W	100W	308Wh	4500 lm	410x150x148	41.0x15.0x14.8	16.14x5.91x5.83
SLSSL-SEMI-L-40	40W	120W	467Wh	6000 lm	410x150x149	41.0x15.0x14.9	16.14x5.91x5.87

Battery: LiFePO4 | Applications: Parks, Hospital, Road & Highways

Efficient Solar Charging and Long Operation

This solar street light charges fully in 6-8 hours of peak sunlight and delivers reliable illumination for 10-12 hours, making it perfect for overnight outdoor lighting. Its high-capacity inbuilt LiFePO4 or Lithium Ion battery ensures consistent performance even with fluctuating sunlight conditions.

Robust and Durable Design

Crafted from aluminum alloy, tempered glass, and ABS, the unit is built to withstand harsh weather. Rated IP65, it is dust-tight and water-resistant. The LED chip (Bridgelux/Epistar/equivalent) provides bright, cool white light with a lifespan of over 50,000 hours for years of maintenance-free operation.

Flexible Installation and Customization

Installation is straightforward, with panel and light mounting recommended at heights from 4 to 8 meters, suitable for poles or wall surfaces. The design accommodates various power and battery capacities, cable lengths, and optional motion sensor integration to meet specific lighting requirements conveniently.

FAQ's of Semi integrated solar street light:

Q: How does the semi-integrated solar street light operate?

A: The light automatically turns on at dusk and off at dawn, powered by its inbuilt LiFePO4 or Lithium Ion battery, which is charged by a mono or polycrystalline silicon solar panel during the day. No manual operation or wiring is needed.

Q: What is the recommended mounting height for this solar street light?

A: For optimal lighting and coverage, it is recommended to mount the unit at a height between 4 and 8 meters, which suits most outdoor street, pathway, and parking lot installations.

Q: Where can these solar street lights be installed?

A: These lights are suitable for various outdoor settings including streets, pathways, parking lots, and campus areas. They can be pole-mounted or wall-mounted, depending on location and preference.

Q: What is the charging time and how long will the light last after charging?

A: The solar street light requires 6-8 hours of full sunlight to fully charge its battery, after which it can illuminate for 10-12 hours, ensuring all-night lighting even with variable sunlight exposure.

Q: Which benefits do the inbuilt battery and motion sensor options provide?

A: The inbuilt LiFePO4 or Lithium Ion battery offers greater efficiency, longer life, and reduced maintenance compared to traditional batteries. An optional PIR motion sensor can extend the lighting period and improve energy savings by activating full brightness only when movement is detected.

Q: What maintenance is required for these solar street lights?

A: These systems are designed to be largely maintenance-free. Occasional cleaning of the solar panel surface may be needed to maintain efficiency, but there is no routine electrical maintenance involved.

Q: What level of protection does the light have against weather conditions?

A: With an IP65 ingress protection rating, the solar street light is completely protected against dust and can withstand heavy rain, making it highly reliable in outdoor environments.
