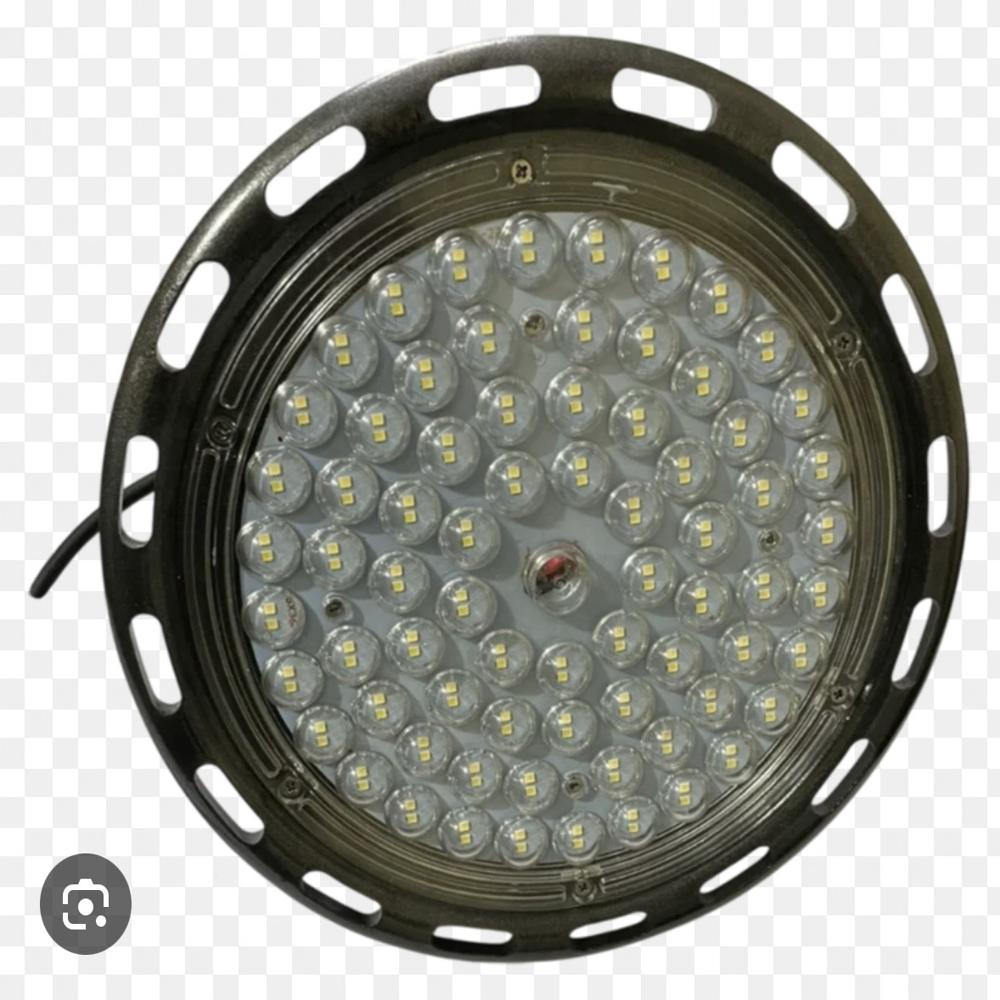

100 Watt LED High Bay Light

100 Watt LED High Bay Light
100 Watt LED High Bay Light

100 Watt LED High Bay Light Specification

  • Efficiency
  • > 90%
  • Features
  • Instant On, Energy Efficient, Long Life, Low Maintenance, Anti-corrosive Die Cast Body
  • Input Voltage
  • AC 85-265V, 50/60 Hz
  • Maintenance Type
  • Low Maintenance
  • Product Type
  • LED High Bay Light
  • Material
  • Aluminum Housing with Polycarbonate Lens
  • Number of Cells
  • Multiple LED Modules
  • Power
  • 100 Watt
  • Operating Temperature
  • -20C to 50C
  • Max Voltage
  • 42V DC
  • Max System Voltage
  • 250V AC
  • Output Voltage
  • DC 36-42V
  • Cable Length
  • 1 Meter (Approx)
  • Switch Mode
  • On/Off
  • Size
  • Standard High Bay
  • Dimension (L*W*H)
  • Approx. 300mm Diameter x 150mm Height
  • Color
  • Cool White (6500K)
  • Weight
  • 2.5 kg (Approx)
  • Application
  • Warehouse, Factory, Industrial Shed, Large Hall, Exhibition Center
  • Type Of Technology
  • SMD LED Technology
  • Installation Type
  • Ceiling Suspension/Hanging Mount
  • Beam Angle
  • 120
  • Warranty Cover
  • Manufacturing Defects Only
  • Driver Type
  • Isolated Driver
  • Protection Level
  • IP65 (Waterproof & Dustproof)
  • Mounting Accessory
  • Steel Hook Included
  • LED Make
  • Branded SMD LEDs
  • Housing Color
  • Black
  • Lifespan
  • 50,000 Hours
  • Surge Protection
  • 4 KV
  • PF (Power Factor)
  • > 0.95
  • CRI (Color Rendering Index)
  • > 80
  • Frequency
  • 50-60 Hz
  • Lumen Output
  • 13000 lm (Approx)


100 Watt LED High Bay Light Trade Information

  • Minimum Order Quantity
  • 10 Pieces
  • Delivery Time
  • 2 Days


100 Watt LED High Bay Light About

Here's the catalogue description for a 100W LED High Bay Light:


100W LED High Bay Light

Illuminate large indoor spaces with bright, uniform, energy-efficient lighting. This 100W LED high bay light delivers up to 13,000-15,000 lumens, making it ideal for facilities with high ceilings where powerful, focused downward lighting is essential.

Featuring a compact UFO-style design with an integrated aluminum heat sink, this fixture ensures efficient heat dissipation for consistent performance and a long operational lifespan of 50,000+ hours. Its high-transmittance PC (polycarbonate) cover distributes light evenly with minimal glare, reducing eye strain in work environments. The IP65 waterproof and dustproof rating makes it suitable for both indoor industrial settings and semi-outdoor covered areas.

Ideal for warehouses, factories, workshops, gyms, supermarkets, exhibition halls, and sports facilities where ceiling heights range from 6-15 meters.

Key Features:

  • Power: 100W (13,000-15,000 lumens)
  • Color Temperature: 6500K Cool White (also available in 5000K/4000K)
  • Waterproof Rating: IP65
  • Beam Angle: 90/120 (available options)
  • Body Material: Die-cast aluminum with PC cover
  • Mounting: Hook/eyebolt mount (ceiling suspension) or bracket
  • Lifespan: 50,000+ hours


Superior Illumination and Energy Efficiency

With a luminous output of 13,000 lumens at just 100 watts, this LED high bay delivers outstanding brightness while maintaining energy efficiency above 90%. The high CRI (>80) ensures that object colors are accurately rendered, contributing to a safer and more visually comfortable workspace. The wide 120-degree beam angle provides broad, uniform coverage, reducing shadow and dark spots.


Rugged, Reliable, and Weatherproof Design

Engineered for industrial-grade durability, this high bay features an IP65 waterproof and dustproof rating, making it suitable for both indoor and semi-outdoor use. The anti-corrosive die-cast aluminum housing and polycarbonate lens offer longevity, even in tough environments. Designed to withstand voltage surges up to 4 KV and a wide operating temperature range, it delivers consistent performance in varying conditions.


Simple Installation and Low Maintenance

This LED high bay comes with a steel hook and a one-meter cable for hassle-free ceiling suspension or hanging mount. Its instant-on function, robust SMD LED modules, and isolated driver mean fewer replacements and minimal maintenance. Enjoy superior lighting with peace of mind, backed by a manufacturer's warranty against defects.

FAQ's of 100 Watt LED High Bay Light:


Q: How do I install the 100 Watt LED High Bay Light?

A: Installation is straightforward. Use the included steel hook to suspend the fixture from the ceiling, ensuring it is securely fastened. Connect to the power source (AC 85-265V, 50/60Hz) and it's ready for use. The 1-meter cable provides flexibility in positioning.

Q: What makes this LED high bay suitable for industrial environments?

A: The fixture is constructed with rugged die-cast aluminum housing, an IP65-rated design for dust and waterproof performance, surge protection up to 4 KV, and anti-corrosive properties, ensuring it withstands harsh industrial settings and varying weather conditions.

Q: When should I consider using this type of lighting?

A: This high bay light is recommended for large areas such as warehouses, factories, industrial sheds, or exhibition centers where robust and energy-efficient lighting is essential for safety and productivity.

Q: What is the benefit of the high color rendering index (CRI > 80)?

A: A higher CRI allows the fixture to accurately display the true colors of objects, enhancing visibility and providing better working conditions-especially important in environments that require color differentiation.

Q: How does the IP65 rating benefit the usage of this light?

A: The IP65 rating ensures that the fixture is fully protected against dust ingress and low-pressure water jets from any direction, making it suitable for both dusty or damp environments.

Q: What is the maintenance process for this LED high bay?

A: Thanks to its long 50,000-hour lifespan, robust build, and instant-on feature, this high bay requires minimal maintenance. Occasional cleaning of dust or debris from the surface will help retain its effectiveness.

Q: Where can this 100 Watt LED High Bay Light be used?

A: It is ideal for use in warehouses, factories, large halls, industrial sheds, and exhibition centers. Its ceiling suspension design allows it to be installed in high-ceiling spaces where wide, uniform lighting is needed.
